Name: High Voltage AC DC Withstand Voltage Test Kit for Hipot Testing Transformer
Brand: XZH TEST
Price: 1 USD

Certification : ISO,CE

Brand Name : XZH TEST

Model Number : XHYB-5/100

Place of Origin : Xi'an, Shaanxi, China

MOQ : 1 unit

Payment Terms : T/T

Supply Ability : 2000PCS/Year

Delivery Time : 5-8 days

Packaging Details : wooden case

Model NO. : XHYB-5/100

Cooling Method : Oil-immersed Type Transformer

Winding Type : Separated Winding Transformer

Frequency Characteristics : Power Frequency

Brand : Xzh Test

Transport Package : Wooden Case Filled with Foam

Trademark : XZH TEST

Origin : China

Customization : Available

Application : Electronic

Phase : Single

Contact Now

XHYB-5/100 High Voltage AC DC Withstand Voltage Test Kit for Hipot Testing Transformer

XHYB-5/100 AC/DC high voltage test transformer/withstand voltage tester

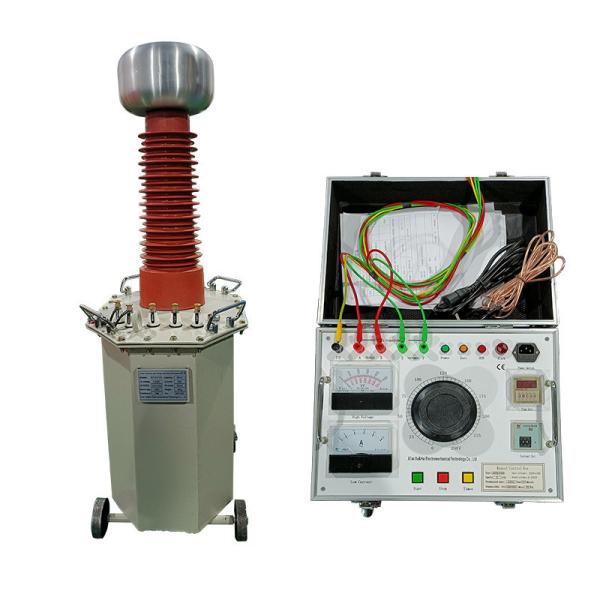

XHYB-5/100 High voltage test transformer is make of two parts. one is test transformer, Another is operator instrument.
This product was an combined-type voltage transformer which design and manufacture according to the avtual needs of grassroots power supply departments and production departments. This 110kV, 0.05 level voltage transformer was high voltage grade and high accuracy that could used to check voltage transformer that below 110kV,0.1 level.
It is used for the frequency internal tooth test and cable fault detection of various electrical equipment. Separately output 0~250/400V AC power.
There are AC/AC series/AC/DC dual-use/series AC/DC dual-use, etc.
Oil type, dry type, inflatable type
It has functions such as over-current, zero start, etc.; it can display values such as voltage and current.
Equipped with over-current relay, electric/manual adjustment of output voltage (according to requirements)

1.Compact structure,small volume,convenient to carry;
2. No need to maintain, wiring simple operation;
For field use, or as the standard voltage transformer and the test transformer in the laboratory.
3. Suit to short cable, the small small volume capacitance
4. Standard: DL/T848.2-2004

Rated nominal capacity	5KVA
Output voltage	AC 100KV, DC140kV
Input voltage of operation box	AC220/380V
Output voltage of operation box	AC0~250/400V
loss	No load loss≤15%, load loss≤15%, total loss≤10%
No-load current	≤30%, Impedance voltage≤15%, turn ration error≤+/-1%
Over current protection	Continuous adjustable, manual setting
